VentMed Auto CPAP-Auto Continuous Positive Airway Pressure, a medical device used to treat breathing disorders like sleep apnea. Auto CPAP with EPR (Expiratory Pressure Relief) is a brand new intelligent CPAP. Adopts advanced sensor technology, automatically tracking patients' respiratory condition, and change the pressure level to adapt your needs at all times. VentMed Auto CPAP has 2types pressure settings---a lower pressure setting which is the most reduced pressure that is needed by the patient in order toprevent his apnea events, and a higher pressure setting.
DS7-------------------------------------
Key Features:
- Effective Treatment AST(Automatic Synchronization Technology) anticipates respiratory waveform and provides corresponding EPAP and IPAP to ensure patient’s comfort and mechanical synchrony.
- Expiratory Pressure Relief: The EPR technology works by reducing the pressure in airway during exhalation, making it easier for users to breathe out. This helps to minimize discomfort, alleviate shortness of breath, and improve overall breathing efficacy. Our AUTO BiPAP machine DS7 is equipped with customizable EPR settings, allowing users to fine-tune the level of pressure relief to suit specific needs.
- Auto-ST Mode: ST mode, or Spontaneous Timed mode, is a highly advanced mode of operation that delivers a set number of breaths per minute while still allowing for spontaneous breathing. This innovative mode of operation is perfect if users require personalized respiratory support without compromising on comfort. With the Auto-ST mode of our VentMed BiPAP DS7, users can experience improved ventilation, reduced work of breathing, and greater treatment flexibility.
- Auto Leak Compensation: The DreamSleep AUTO BiPAP Machine DS7 uses advanced algorithms and sensors within the machine and mask to detect any air leakage and analyzes the data to determine the amount of pressure loss caused by the leakage. It immediately compensates for the lost pressure by increasing the pressure delivery of the BiPAP machine. This real-time analysis & adjusting ensures that users receive optimal respiratory therapy throughout the entire session.

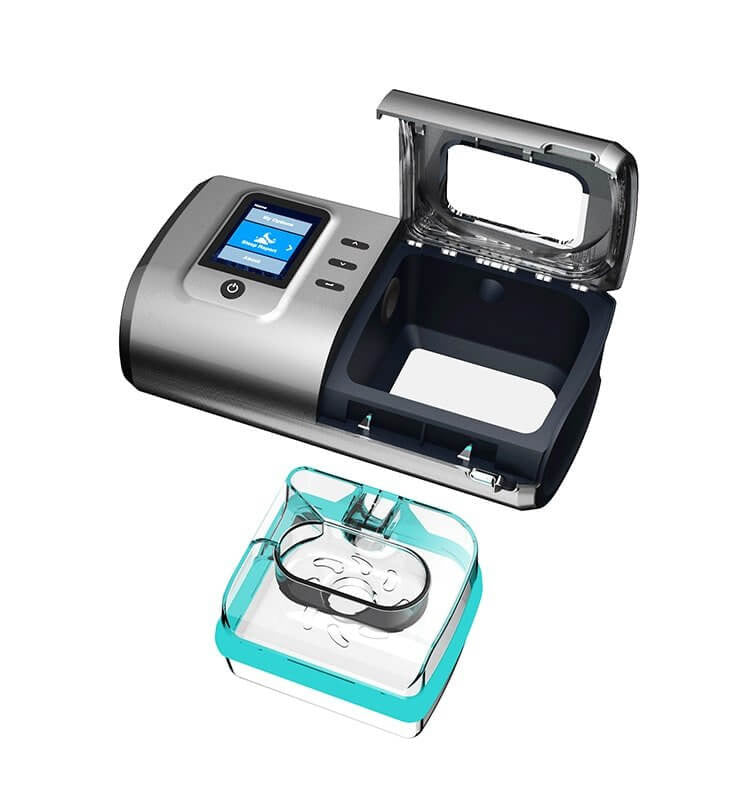

- Heated Humidification System: The humidifier moistens the air and is designed to make therapy more comfortable. Users can set the Humidity Level to off (0) or between 1 and 5, where 1 is the lowest humidity setting and 5 is the highest humidity setting. The user-friendly chamber design is very easy to disassemble and install, which is convenient for adding water and cleaning.
- Auto ON / OFF: Designed to make the device start automatically in a while after putting on mask, and stop the device work automatically in 10 seconds after putting off mask. The Auto ON/OFF function can be turned off on the menu.
- Smart Ramp Settings: It lets the sleep apnea therapy start from a low and pleasant pressure level when the user is still awake. Then the air pressure is gradually ramped up to the correct level and the user can easily fall asleep without even noticing the increment.
- Sleep Tracking: It comes with a TF card that will allow users to keep detailed data about sleep disorder. The new TF card will allow users to store sleep apnea information, which enables users to get therapy support from doctor, and compile compliance reports.
- Alarm Setting: Designed to alarm when there is air leakage, mask off or power failture.
-
Whisper-Quiet: It is less than 26 decibels (dB), making it quieter than a whisper and comparable to leaves rustling.
Warranty:
- Bipap Machine: 1 year
- Not applicable on accessories
Country of Origin | China |
---|---|
Model | DS7 |
Sound/Noise Level | <28 dB |
Dimensions | 28L x 14W x 9.5H(machine); 38.5L x 36.5W x 16H(1pc carton) |
Water Capacity | 220ML max |
Screen Auto Sleep | Auto sleep in 15 minutes, press any button to highlight screen |
Backup Rate | 5-50/min, adjustable |
Over-Temperature Protection | Stop automatically, alarm with 4 times |
I/E | 10-80% |
Inspirate Triggle | 1-5 level |
Weight (with Humidifier) | 1.6Kg (Net Weight); 3.9Kg (Gross Weight) |
Alert | Power off, Mask off |
Humidifier Level | Integrated Heated, 0-5 level |
DC Current | 2.5A |
Ramp Item | 0-60min adjustable 1min/Step |
Power Supply | Input 100-240V, 50-60Hz, 1-2A; Output + 24V, 2.5A |
Color | Grey |
Model Number | BiPAP DS-7(ST25) |
Work Mode | CPAP, Auto, S, T, ST |
Screen | 2.8 Inch TFT, 320 x 240 |
Pressure Range | 4-25 cmH2O |
Data Storage | SD Card |
EPAP | 4-20 cmH2O |
IPAP | 4-25 cmH2O |
DC Voltage | 24VDC |
DS8--------------------------------------------------------------

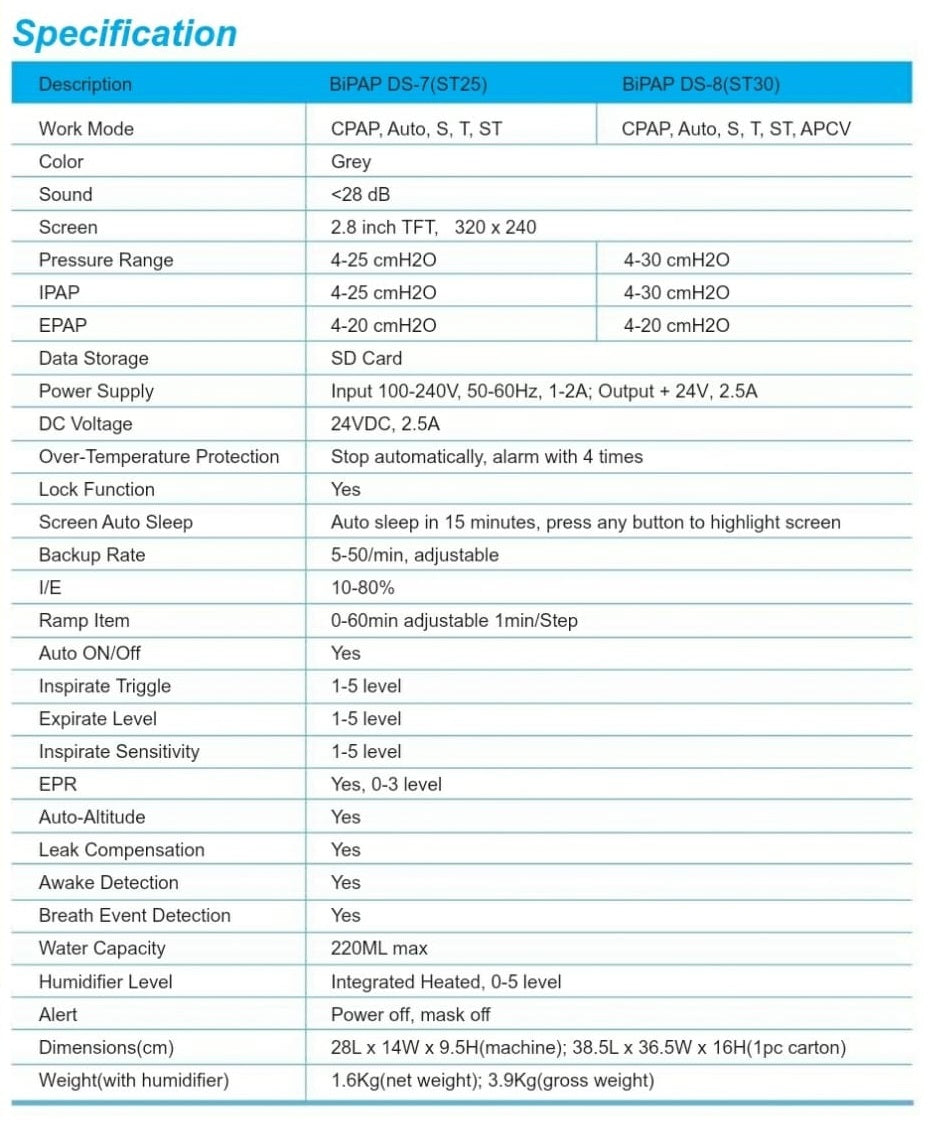

Specification
Work Mode | CPAP, Auto, S, T, ST, APCV |
Color | Grey |
Sound | <28 dB |
Screen | 2.8 inch TFT, 320 x 240 |
Pressure Range | 4-30 cmH2O |
IPAP | 4-30 cmH2O |
EPAP | 4-20 cmH2O |
Data Storage | SD Card |
Power Supply | Input 100-240V, 50-60Hz, 1-2A; Output + 24V, 2.5A |
DC Voltage | 24VDC, 2.5A |
Over-Temperature Protection | Stop automatically, alarm with 4 times |
Lock Function | Yes |
Water Capacity | 220ML max |
Humidifier Level | Integrated Heated, 0-5 level |
Dimensions(cm) | 28L x 14W x 9.5H(machine); 38.5L x 36.5W x 16H(1pc carton) |
Weight(with humidifier) | 1.6Kg(net weight); 3.9Kg(gross weight) |
|
|
|
---|---|---|
Easy NavigationUp and Down keys make operation very easy and durable. Easy Handling and device settings options |
HumidificationHealthily Heating and Humidification system, releasing a larger amount of humidification. Maintain ideal humidity for 10ml/L in flow of 60L/min |
Sleep ReportProfessional Sleep report analysis with Man-machine Synchrony and real time display. Unique algorithm to adjust pressure , breathing and leakage make users more comfortable. |

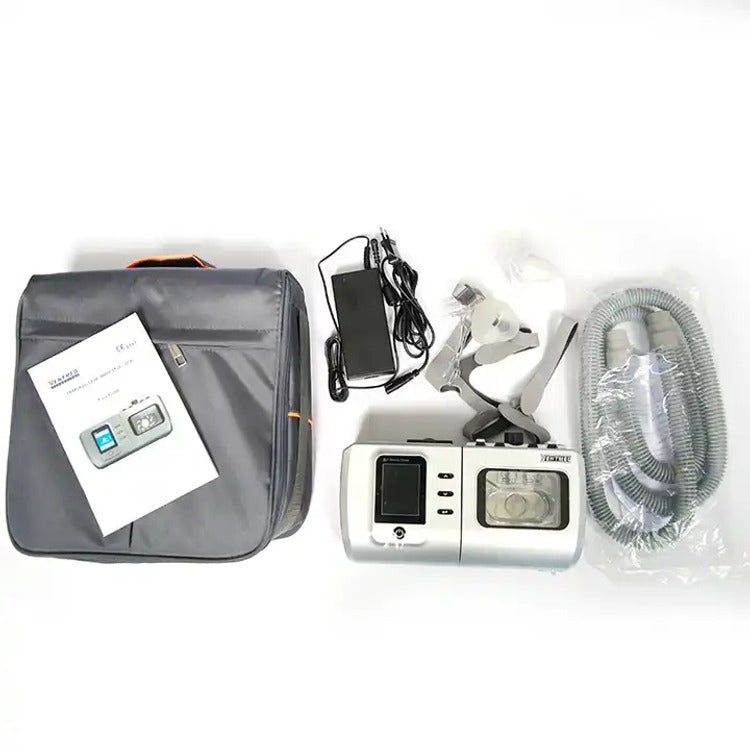

What is in the box
1 x Main Unit, 1 x Host Device with Integrated Humidifier, 1 x Full Face Mask, 5 x Filter Cotton, 1 x BiPAP Tubing, 1 x Water Chamber, 1 x SD Card, 1 x Measuring Cup, 1 x Power Supply Unit, 1 x Carry Package, 1 x User Manual
